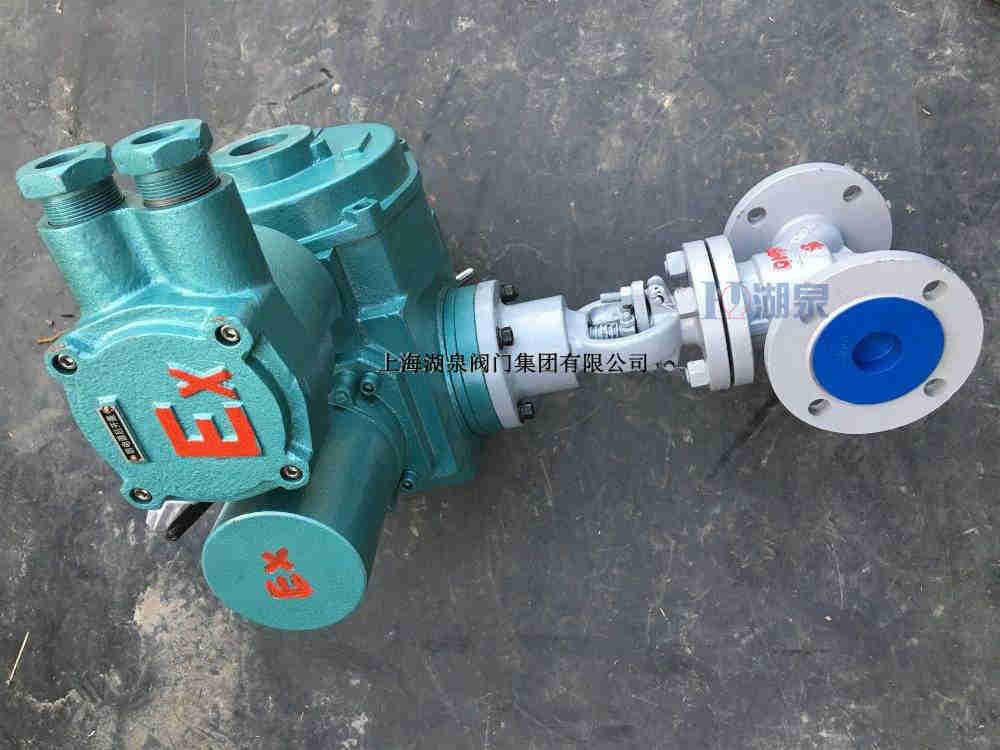

上海湖泉閥門集團有限公司防爆電動截止閥,安裝更簡單,施工項目驗收無憂長壽命低泄漏石墨填料,幫用戶縮短工期50%,節省人工防爆電動截止閥適用于易燃易爆的工況場合當中,主要由防爆型電動執行裝置與截止閥組合而成,依靠電源驅動來開啟或關閉閥門。它廣泛適用于石油、化工、制藥、化肥、電力行業上。是一款高品質、高性價比的安防產品,如果您對電動防爆截止閥的價格、報價、參數、型號、廠家、介紹、圖片...上海湖泉專業生產供應防爆電動截止閥,作為電動閥門制造商之一,防爆電動閥門廠家供應,自控電動閥門生產廠家,閥門廠家哪個比較好,專業生產廠家,產品選材優質,品種齊全,免費提供技術指導服務,專業的技術人員指導,服務好,是您家的選擇。

截止閥型號很多，如下：法蘭截止閥：J41H、J41Y、J41W。 絲扣截止閥：J11F、J14H、J11W、J91W。氧氣截止閥：JY41W、JY641H、JY41H。  美日標截止閥：J41Y、J41W。 波紋管截止閥：WJ41H、WJ41W。 低溫截止閥：DJ41H、DJ41Y、DJ41F。 電動截止閥：J941F、J941H。 不銹鋼截止閥：J41F、J41H、J41W。 焊接截止閥：J61Y、J61W、J961Y、J961W。 角式截止閥：J44H、J44W、J47H、J47W。 襯氟截止閥：J41F46。  傘齒輪截止閥：J541H、J541W。 保溫截止閥：BJ41F、BJ41H。氣動截止閥：J641F、J641H、J641W。

電動截止閥型號編制及表示方法：
截止閥附加代號：W表示波紋管、D表示低溫、B表示保溫；
1、截止閥類別代號：J表示截止閥；
2、截止閥傳動方式：手動無代號、5傘齒輪、6氣動、9電動；
3、截止閥連接方式：4法蘭連接、6焊接；
4、截止閥結構形式：1直通式、2 Z型直通、3三通、4角式、5 Y型直流式、6平衡直通式、7平衡角式、8針型；
5、截止閥密封材質：F氟橡膠、H不銹鋼、N尼龍塑料、Y硬質合金、M蒙乃爾合金、W閥體直接加工；
6、截止閥公稱壓力：16表示壓力1.6mpa就是十六公斤的意思，PN1.6-32mpa、IN150LB-1500LB、5-63K；
7、截止閥閥體材料：A鈦合金、C碳鋼、I鉻鉬鋼、P不銹鋼304、R不銹鋼316；

防爆電動截止閥的型號如下：
JB941H-10C DN32/J941H-10C DN40/J9B41H-10C DN50/J9B41H-10C DN65/J9B41H-10C DN80/J941H-10C DN100/J941H-10C DN125/J941H-10C DN150/J941H-10C DN200/J941H-10C DN250/J941H-10C DN300/J9B41H-10C DN350/J9B41H-10C DN400/J9B41H-10C DN450/J941H-10C DN500/J941H-10C DN600/J941H-10C DN700/J941H-10C DN800/J941H-10C DN900/J941H-10C DN1000/J941H-16C DN32/J941H-16C DN40/J941H-16C DN50/J9B41H-16C DN65/J941H-16C DN80/J941H-16C DN100/J9B41H-16C DN125/J941H-16C DN150/J941H-16C DN200/J941H-16C DN250/J941H-16C DN300/J941H-16C DN350/JB941H-16C DN400/J941H-16C DN450/J941H-16C DN500/J941H-16C DN600/J941H-16C DN700/J941H-16C DN800/J941H-16C DN900/J941H-16C DN1000/J941H-25C DN32/J9B41H-25C DN40/J941H-25C DN50/J941H-25C DN65/J941H-25C DN80/J941H-25C DN100/J941H-25C DN125/J941H-25C DN150/J941H-25C DN200/J941H-25C DN250/J941H-25C DN300/J941H-25C DN350/J9B41H-25C DN400/J941H-25C DN450/J941H-25C DN500/J941H-25C DN600/J941H-25C DN700/J941H-25C DN800/J941H-25C DN900/J941H-25C DN1000/J941H-40C DN32/J941H-40C DN40/J9B41H-40C DN50/J941H-40C DN65/J941H-40C DN80/J941H-40C DN100/J941H-40C DN125/J9B41H-40C DN150/J941H-40C DN200/J941H-40C DN250/J941H-40C DN300/J941H-40C DN350/J941H-40C DN400/J9B41H-40C DN450/J9B41H-40C DN500/J941H-40C DN600/J941H-40C DN700/J941H-40C DN800/J9B41H-40C DN900/J941H-40C DN1000/J941H-64C DN32/J941H-64C DN40/J941H-64C DN50/J941H-64C DN65/J9B41H-64C DN80/J941H-64C DN100/JB941H-64C DN125/J941H-64C DN150/J941H-64C DN200/J9B41H-64C DN250/JB941H-64C DN300/J941H-64C DN350/J941H-64C DN400/J941H-64C DN450/J941H-64C DN500/J941H-64C DN600/J941H-64C DN700/J941H-64C DN800/J941H-64C DN900/J9B41H-64C DN1000/JB941H-100C DN32/J941H-100C DN40/J941H-100C DN50/J941H-100C DN65/J941H-100C DN80/J941H-100C DN100/J941H-100C DN125/J941H-100C DN150/J941H-100C DN200/J9B41H-100C DN250/J941H-100C DN300/J941H-100C DN350/J941H-100C DN400/J94B1H-100C DN450/J941H-100C DN500/J9B41H-100C DN600/J941H-100C DN700/J9B41H-100C DN800/J941H-100C DN900/J941H-100C DN1000
